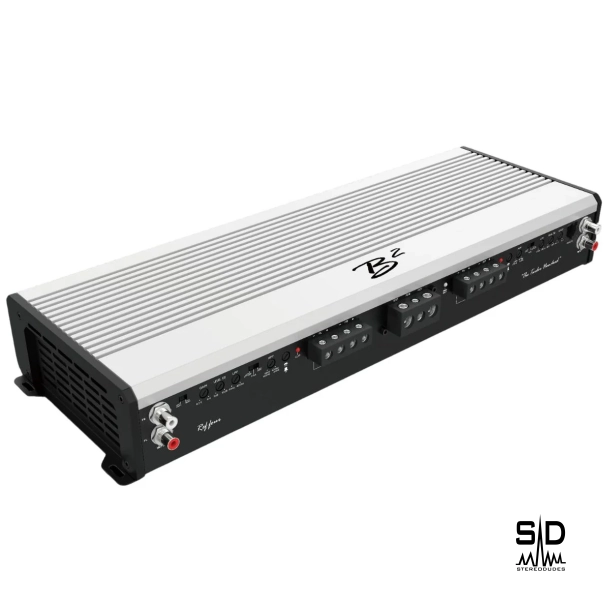

Ref Four 4CH 1200W SQ Amplifier

Ref Four 4CH 1200W SQ Amplifier

8.999,00 NOK

Veil. salgspris 8.999,00 NOK


Frequency Response: 15 Hz ~ 25 KHz
Signal to Noise Ratio: >90 dB
Input Sensitivity: 6 V ~ 0.3 V
Crossover: 24 dB / Oct
High Pass Crossover : 40 Hz ~ 4 KHz
Low Pass Crossover: 40 Hz ~ 400 Hz
Power Terminal gauge: 0 GA
Fuse Rating: 150 A

Dimensions: 471 x 160 x 64 mm
Power @ 4 Ω 14.4v < 1% THD: 4x 200 w
Power @ 2 Ω 14.4v < 1% THD: 4x 300 w

Lagerstatus: Ikke på lager
stk.

The B2 Audio REF FOUR is a robust, full-range 4-channel amplifier built with Class A/B topology for audiophiles who demand sound quality, headroom, and flexibility. With a wide frequency response of 15 Hz to 25 kHz, the REF FOUR delivers clean, controlled power across the entire audible spectrum. It features advanced crossover options, bass EQ boost, and a smart monitoring system with clip, voltage, and thermal indicators. Capable of pushing 4 x 300W RMS at 2 ohms or 2 x 1200W RMS bridged at 4 ohms, this amplifier is ready for both daily systems and competition-grade builds. Its rugged build, 0-gauge power terminals, and efficient layout make it a premium choice for high-performance installations.

Tittel Type Størrelse Last ned
reffour_v2.pdf PDF 19.06MB Last ned
