B2 Audio Rage 65X
B2 Audio Rage 65X
T/S-parametere ⌄
Re: 3,4 Ω
Qms: 8,17
Qes: 0,606
Qts: 0,564
Vas: 8,64 L
Mms: 13,98 g
Sd: 132 cm²
Xmax: 5 mm
BL: 5,97 Tm
Le (1 kHz): 0,521 mH
Virkningsgrad: 0,525 %
EBP: 90,8 (beregnet fra Fs/Qes)
Tekniske spesifikasjoner
| Type | 2-veis koaksialhøyttaler |
| Størrelse | 6,5 tommer (165 mm) |
| RMS-effekt | 85 W per element |
| Maks effekt | 200 W per element |
| Impedans | 4 Ω |
| Frekvensområde | 60–30 000 Hz |
| Følsomhet | 90 dB |
| Talespole | 25,4 mm (1 tomme) |
| Talespolemateriale | CCA |
| Magnettype | Neodym / ferritt |
| Magnetvekt | 13,6 oz |
| Membranmateriale | IMWRP, vannavvisende |
| Oppheng | U-formet gummi |

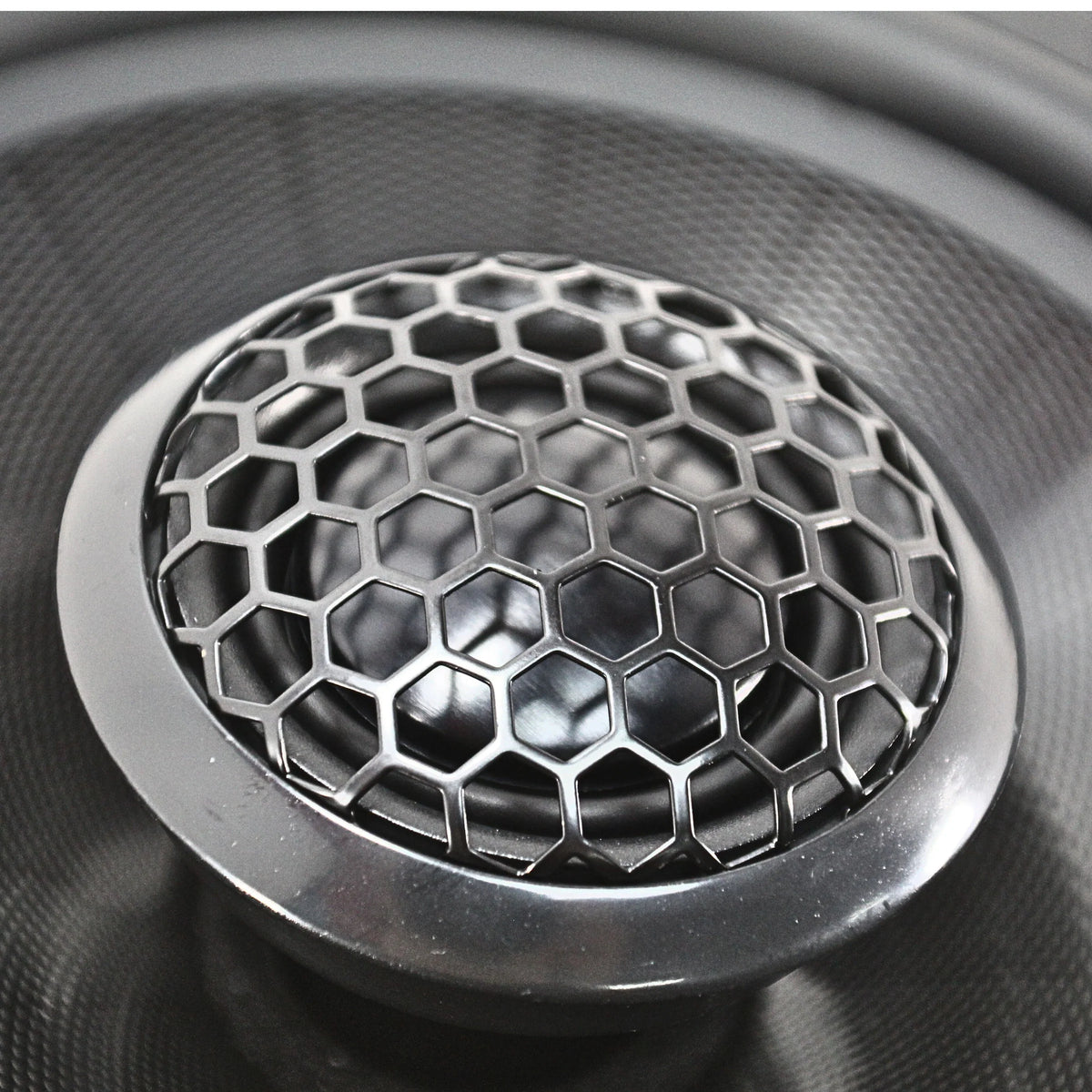

| Diskant | Integrert koaksialdiskant |
| Monteringsdybde | 58,5 mm |
| Total dybde | 85 mm |
| Utskjæringsdiameter | 143 mm |
| Ytre diameter | 165 mm |
| Vekt | 1,0 kg per element |
| Salgsenhet | Par (2 høyttalere) |
BEYOND A COAX
Our team has expertly crafted a premium successor to the ISX coaxials. This 6.5″ loudspeaker is not just any ordinary coaxial, but an exceptional component kit with a top-of-the-line wideband tweeter, providing unparalleled sound quality with minimal interference. We have incorporated a two-way crossover to optimize the tweeter’s performance. Despite the crossover, this configuration features an outstanding cutoff frequency of ~1100 Hz – 1.5 octaves lower than conventional speakers – and is capable of reaching up to 30,000 Hz. This concentric loudspeaker effortlessly matches, if not surpasses, component kits in the market while easily fitting in the OEM position.
This loudspeaker boasts a max rating of 200 watts, making it ideal for use with both external amplifiers and headunits with ease.
THE COMPLETE PACAKGE
Our two-way crossover allows for a premium audio experience with our speakers. Thanks to our innovative engineering and cutting-edge technology, we’ve managed to create speakers that produce exceptional audio performance without sacrificing quality. The IMWRP cone, crafted from a unique blend of materials, not only provides superior sound quality but also produces weather-resistant and lightweight speakers, making them ideal for the most challenging outdoor environments.
These concentric loudspeakers ensure that you get the most out of your audio experience, whether you’re on a powersports vehicle, boat, bike, or in a car. We’ve designed our speakers to deliver exceptional sound quality, giving you the best possible listening experience. Moreover, our speakers are equipped with the latest features that make them versatile and easy to use, so you can enjoy your music wherever you go.
