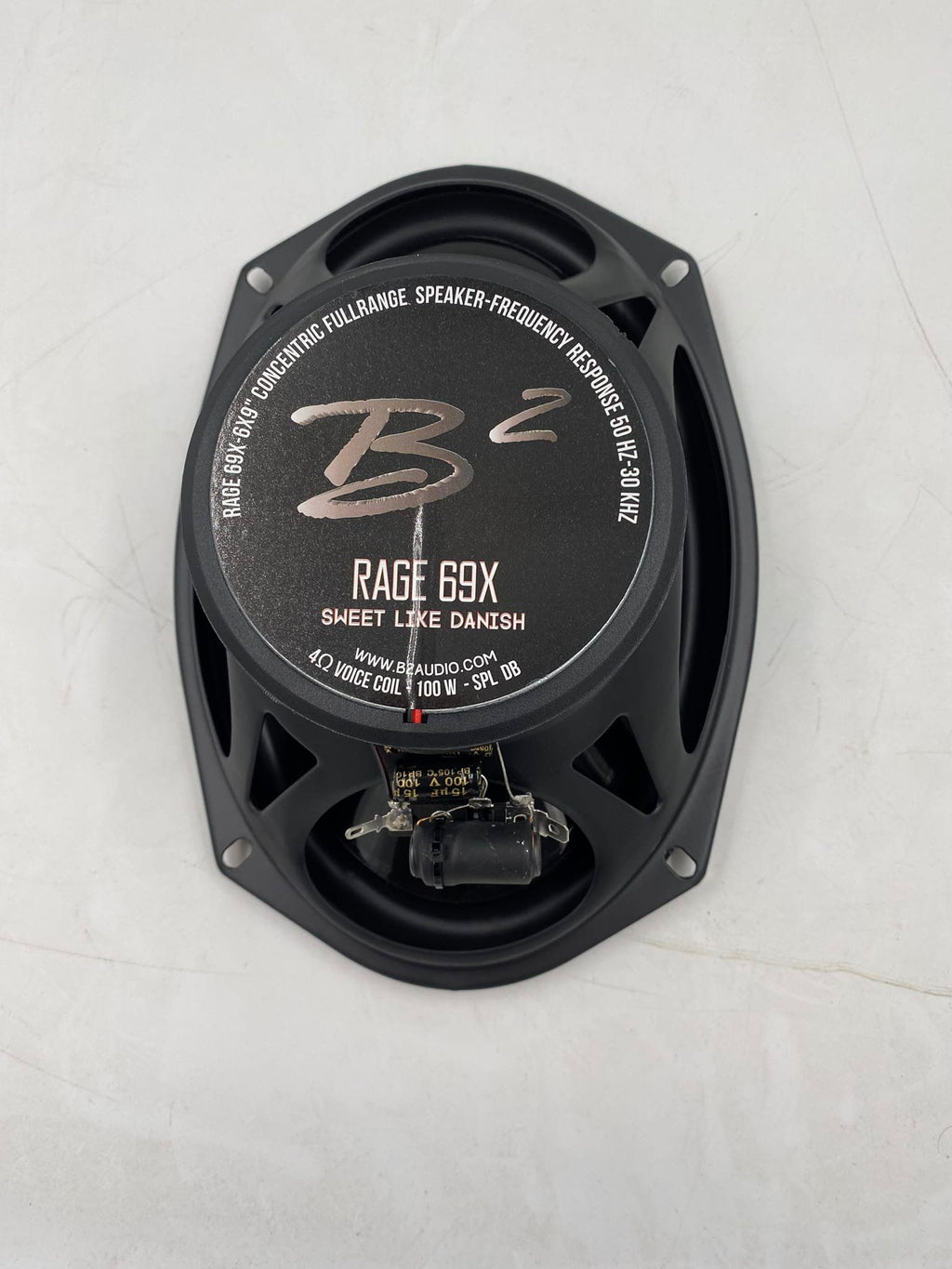

B2 Audio Rage 6x9
B2 Audio Rage 6x9
T/S-parametere ⌄
Re: 3,4 Ω
Qms: 6,43
Qes: 0,93
Qts: 0,815
Vas: 24,26 L
Mms: 20,9 g
Sd: 210,5 cm²
Xmax: 5 mm
BL: 5,17 Tm
Le (1 kHz): 0,461 mH
Virkningsgrad: 0,44 %
EBP: 59,1
Tekniske spesifikasjoner
| Type | 2-veis koaksialhøyttaler |
| Størrelse | 6 × 9 tommer |
| RMS-effekt | 100 W per element |
| Maks effekt | 300 W per element |
| Impedans | 4 Ω |
| Frekvensområde | 50–30 000 Hz |
| Følsomhet | 90 dB |
| Talespole | 25,4 mm (1 tomme) |
| Talespolemateriale | CCA |
| Magnettype | Neodym / ferritt |
| Magnetvekt | 20,6 oz |
| Membranmateriale | IMWRP, fuktbestandig |
| Oppheng | U-formet gummi |
| Diskant | Integrert silkedome |
| Delefilter | Integrert 2-veis |
| Monteringsdybde | 74 mm |
| Total dybde | 85 mm |
| Utskjæringsmål | 219,4 × 121,6 mm |
| Ytre mål | Ca. 165 × 234 mm |
| Vekt | 1,39 kg per element |
| Salgsenhet | Par (2 høyttalere) |
| Beskyttelsesgriller | Inkludert |
BEYOND A COAX

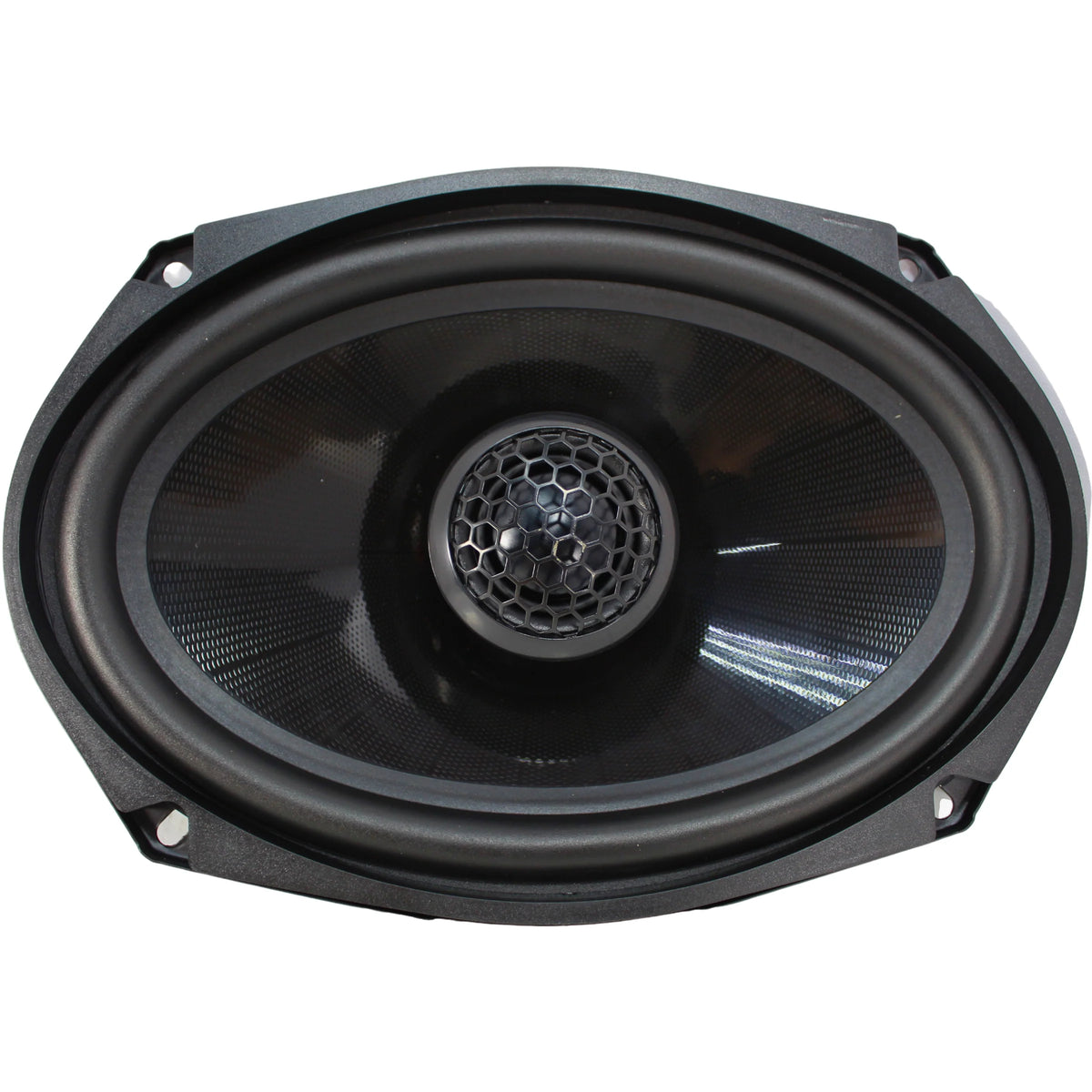

After thorough planning, our team has successfully crafted a premium successor to the ISX coaxials. The 6×9 loudspeaker is not just any ordinary coaxial but an exceptional component kit that boasts a top-of-the-line wideband tweeter, providing higher quality sound with minimal interference. We have incorporated a two-way crossover to optimize the performance of the tweeter. Despite the crossover, this configuration features a remarkable cutoff frequency of ~1100 Hz – 1.5 octaves lower than conventional speakers – and is capable of reaching up to 30,000 Hz. This concentric loudspeaker effortlessly matches, if not surpasses, component kits in the market.
With a max rating of 300 watts, this loudspeaker can easily be used with external amplifiers as well as headunits.
THE COMPLETE PACAKGE

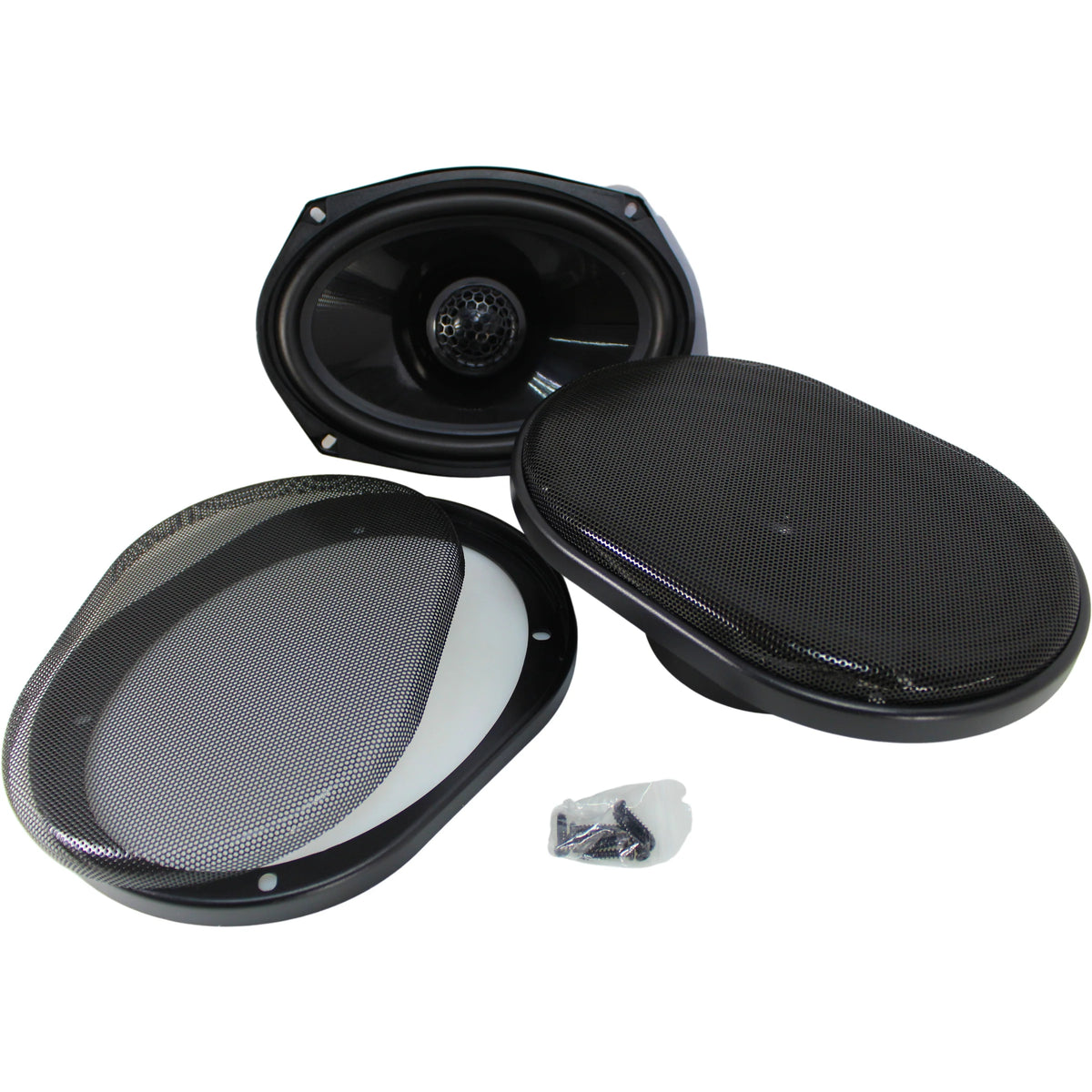

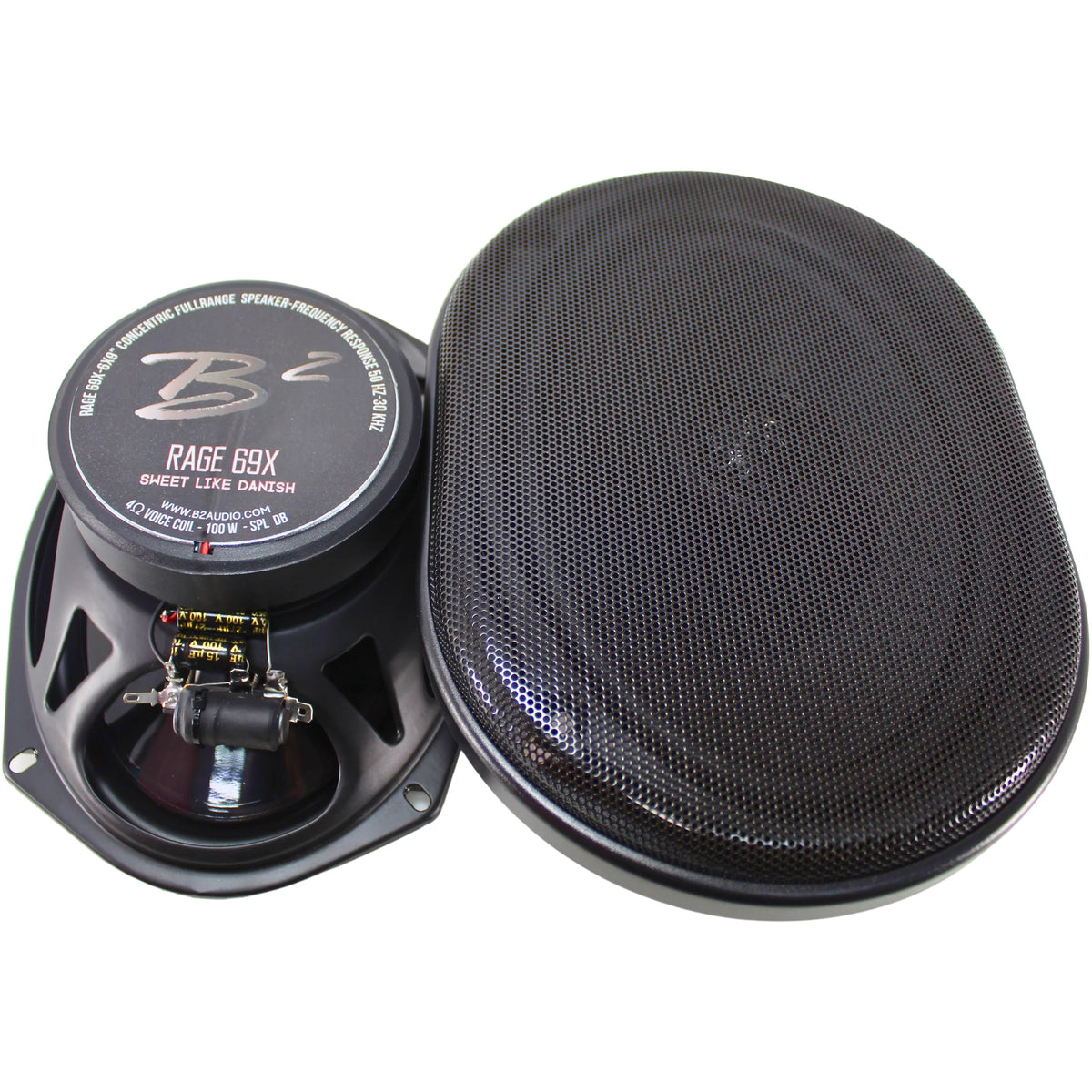

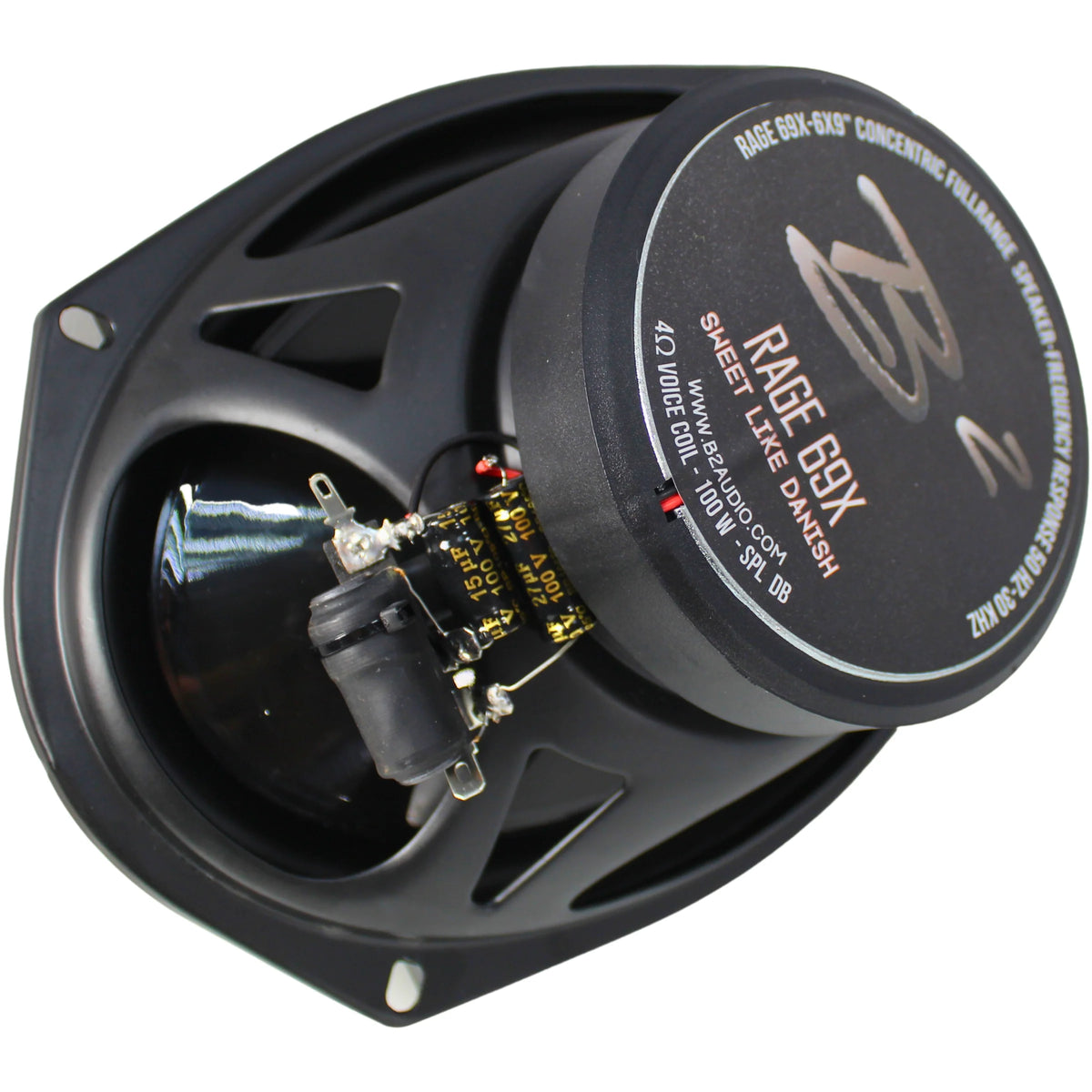

The two-way crossover not only filters out the silk dome tweeter but also attenuates the woofer to further balance the sound. This ensures that the audio output is of high quality, and the sound is evenly distributed. Furthermore, the IMWRP cone, which is made up of a unique blend, makes it both weatherproof and lightweight, making it ideal for use in a variety of outdoor settings. These concentric loudspeakers are perfect for powersports, bikes, and cars as they can withstand harsh weather conditions and produce great sound quality. Moreover, to make installation easier, the supplied grills help you create the perfect cutout pattern without any fuss, saving you time and effort.
