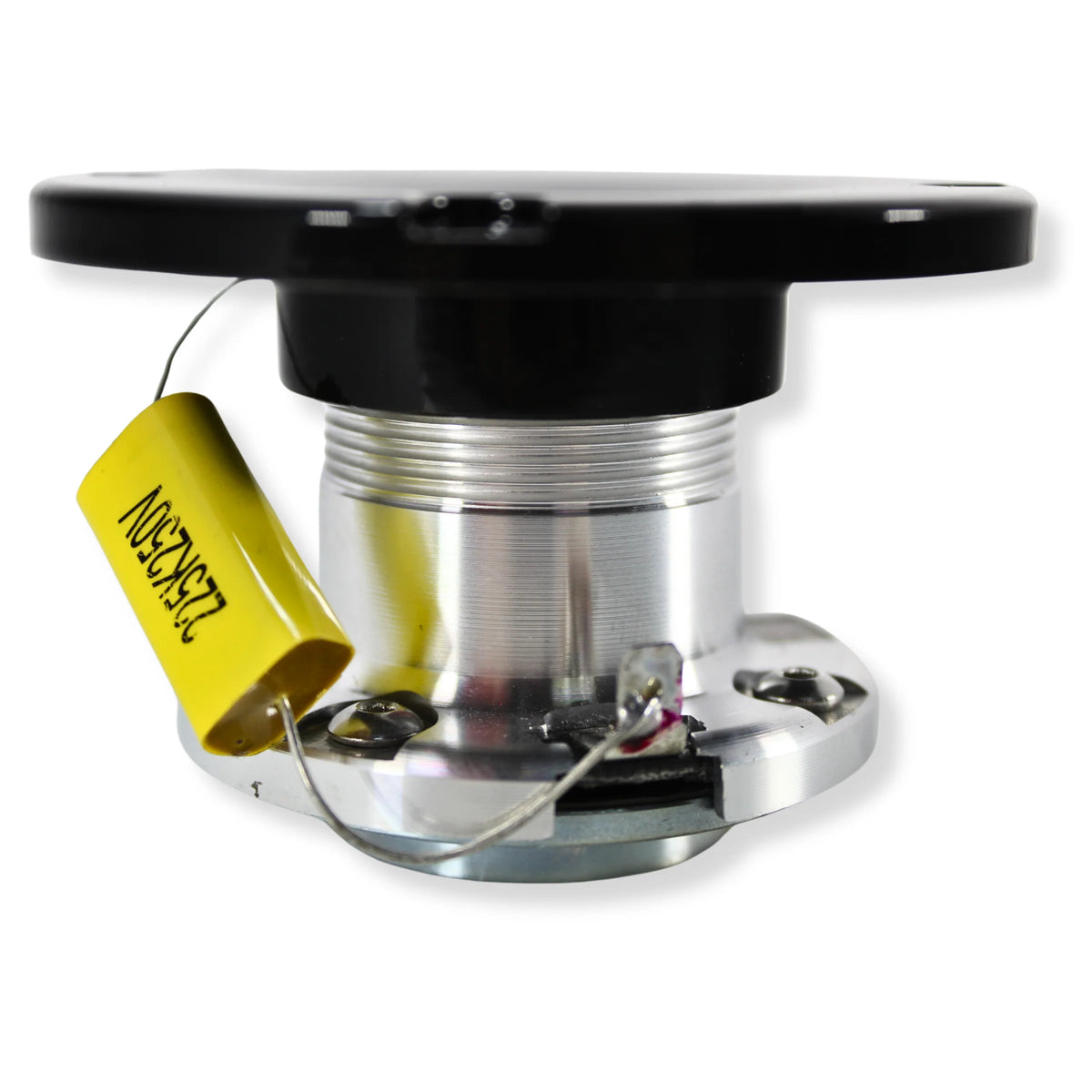

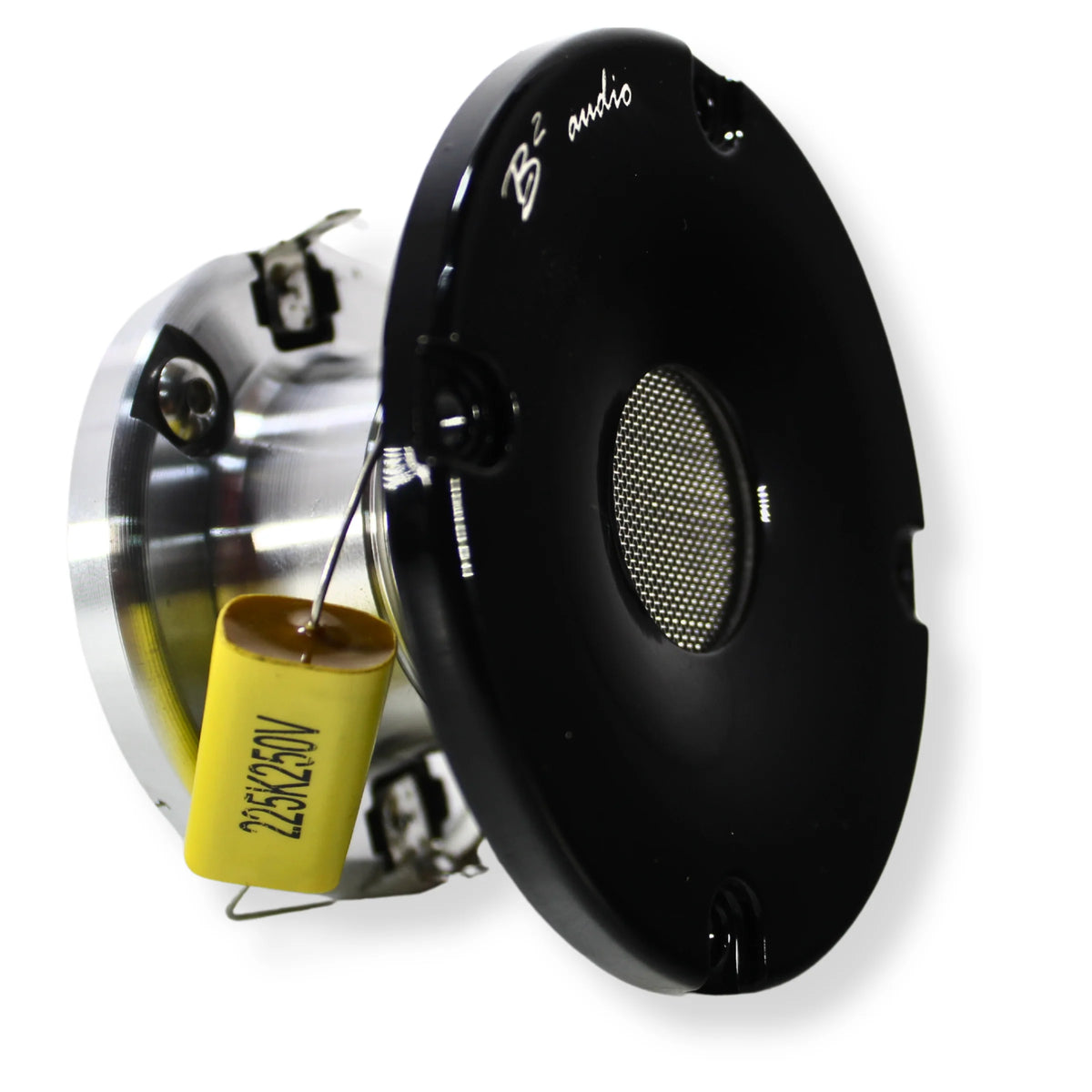

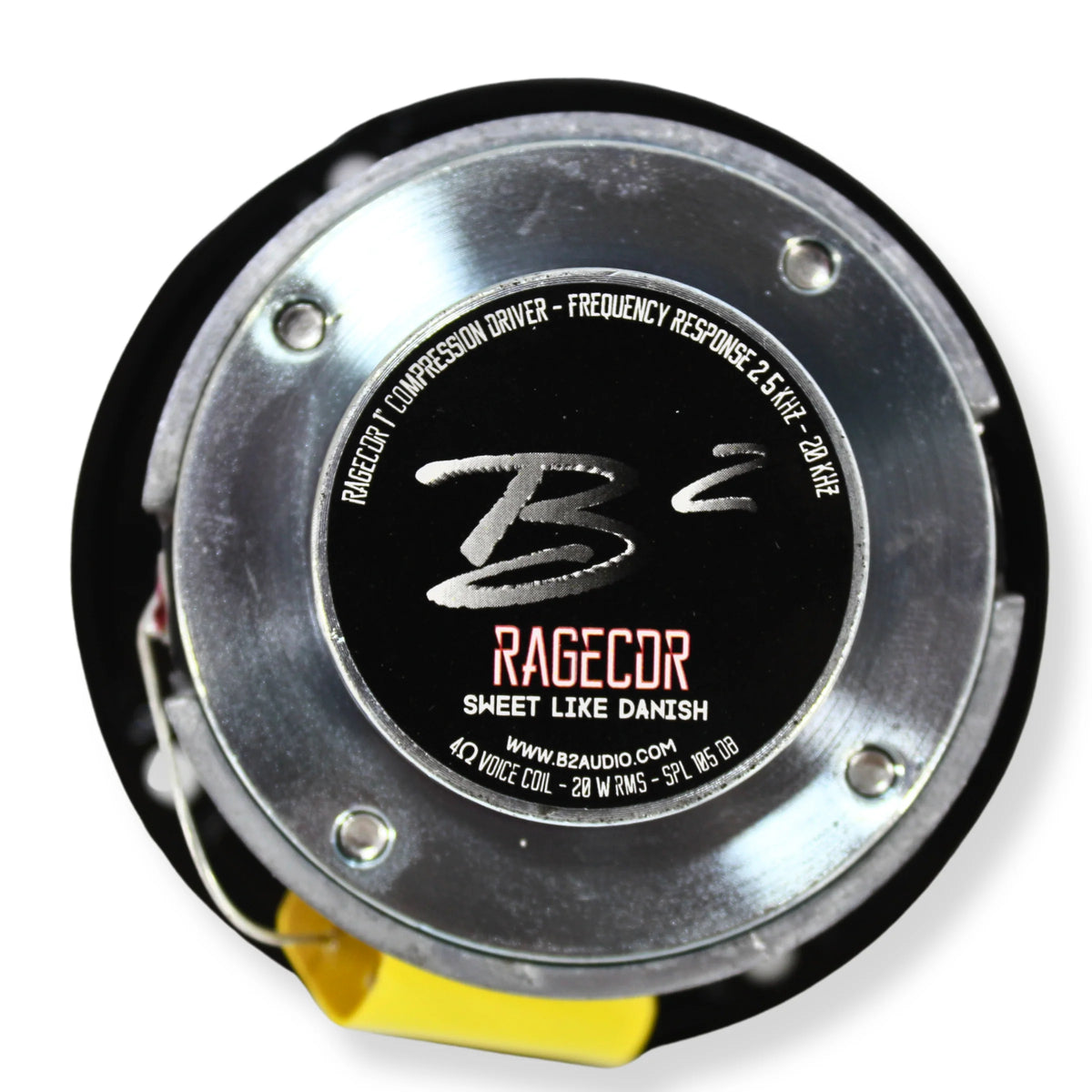

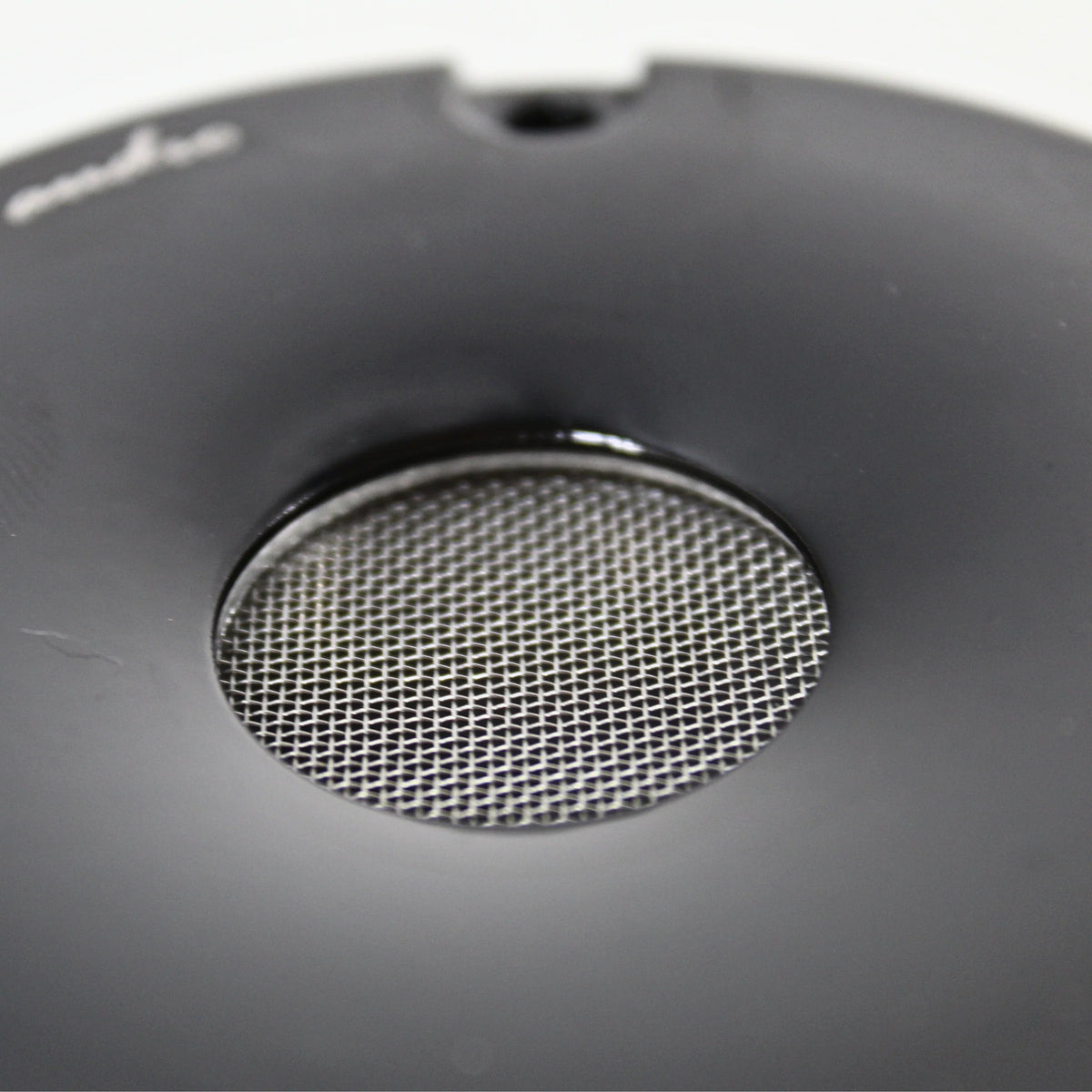

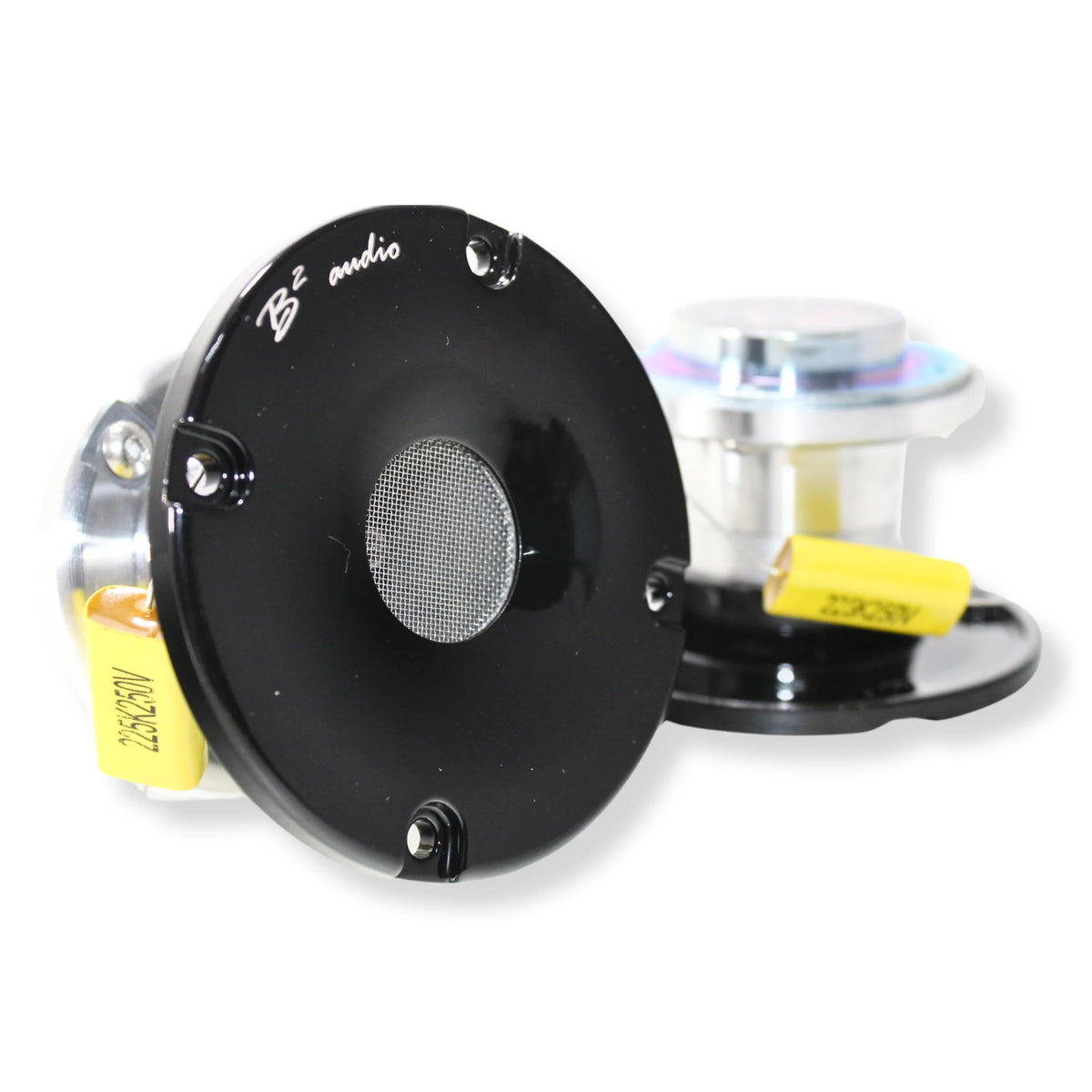

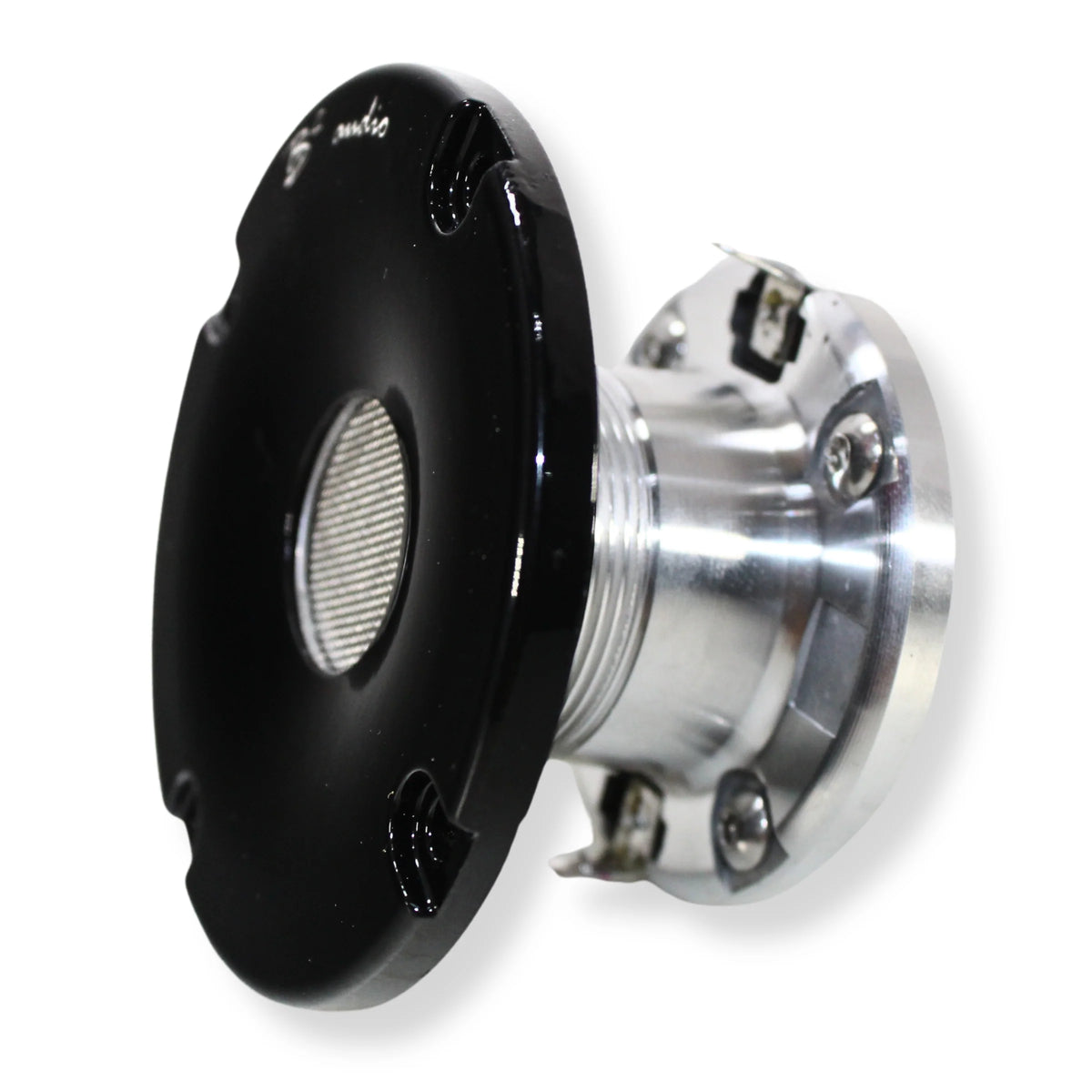

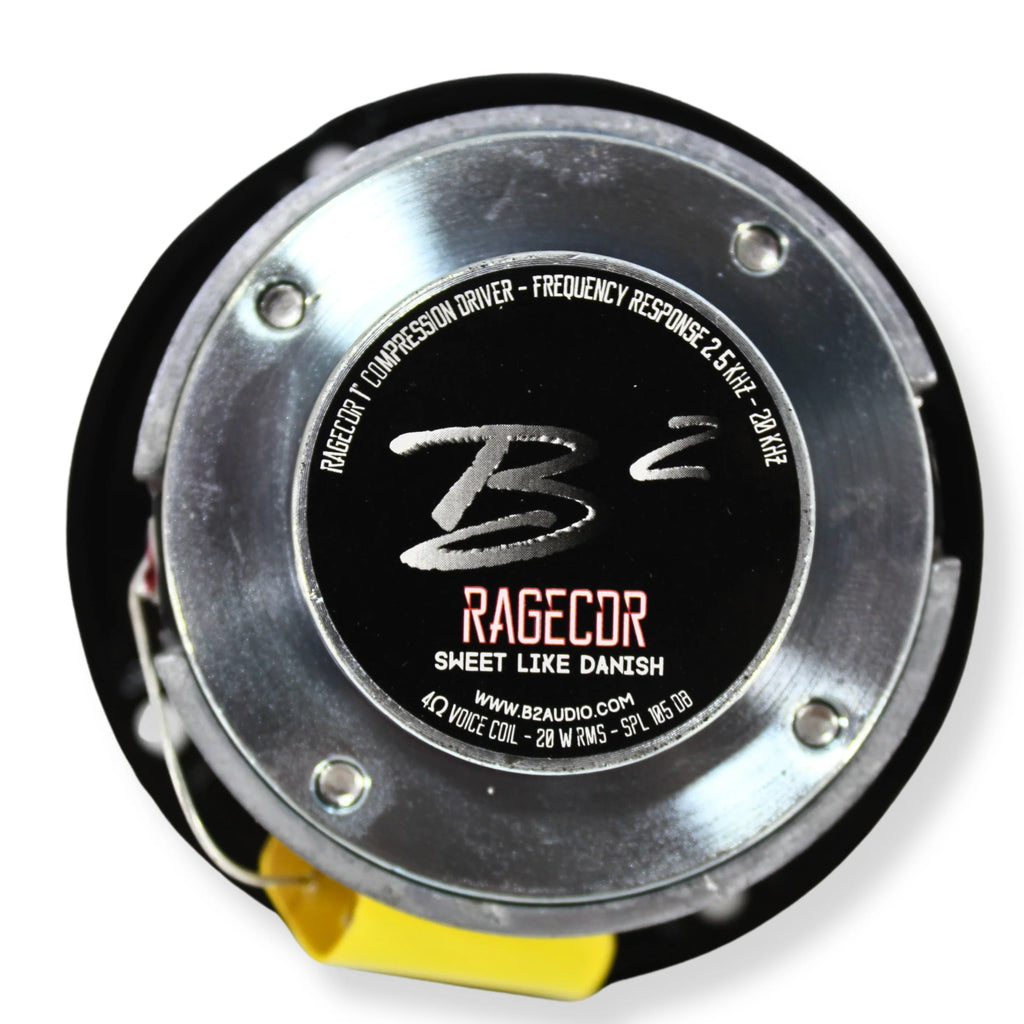

B2 Audio Rage CDR
B2 Audio Rage CDR
T/S-parametere ⌄
Tekniske spesifikasjoner
| Type | Kompresjonsdriver / horndiskant |
| RMS-effekt | 60 W per element |
| Maks effekt | 120 W per element |
| Impedans | 4 Ω |
| Frekvensområde | 2 000–20 000 Hz |
| Følsomhet | 101 dB (1 W / 1 m) |
| Talespole | 24,8 mm (1 tomme) |
| Talespolemateriale | CCAR |
| Magnettype | Neodym |
| Membranmateriale | PEN |
| Halsdiameter | 34,2 mm |
| Anbefalt delefrekvens | 3 000 Hz / 12 dB per oktav |
| Kondensator | 2,2 µF / 250 V |
| Monteringsdybde | 52,7 mm |
| Total dybde | 58,5 mm |
| Ytre diameter | 80,2 mm |
| Boltsirkel | 70 mm |
| Monteringshull | 4 × 4,3 mm |
COMPRESSION

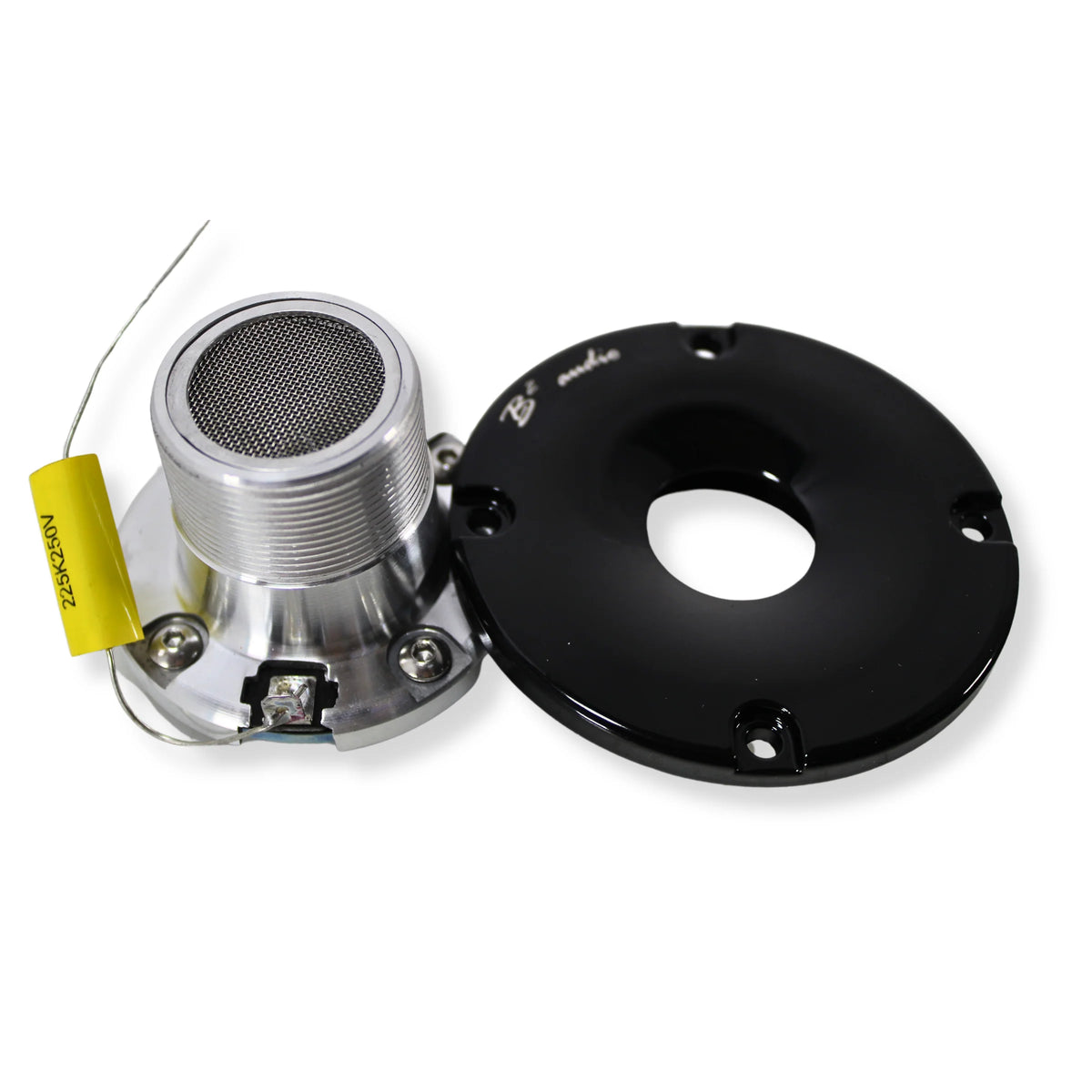

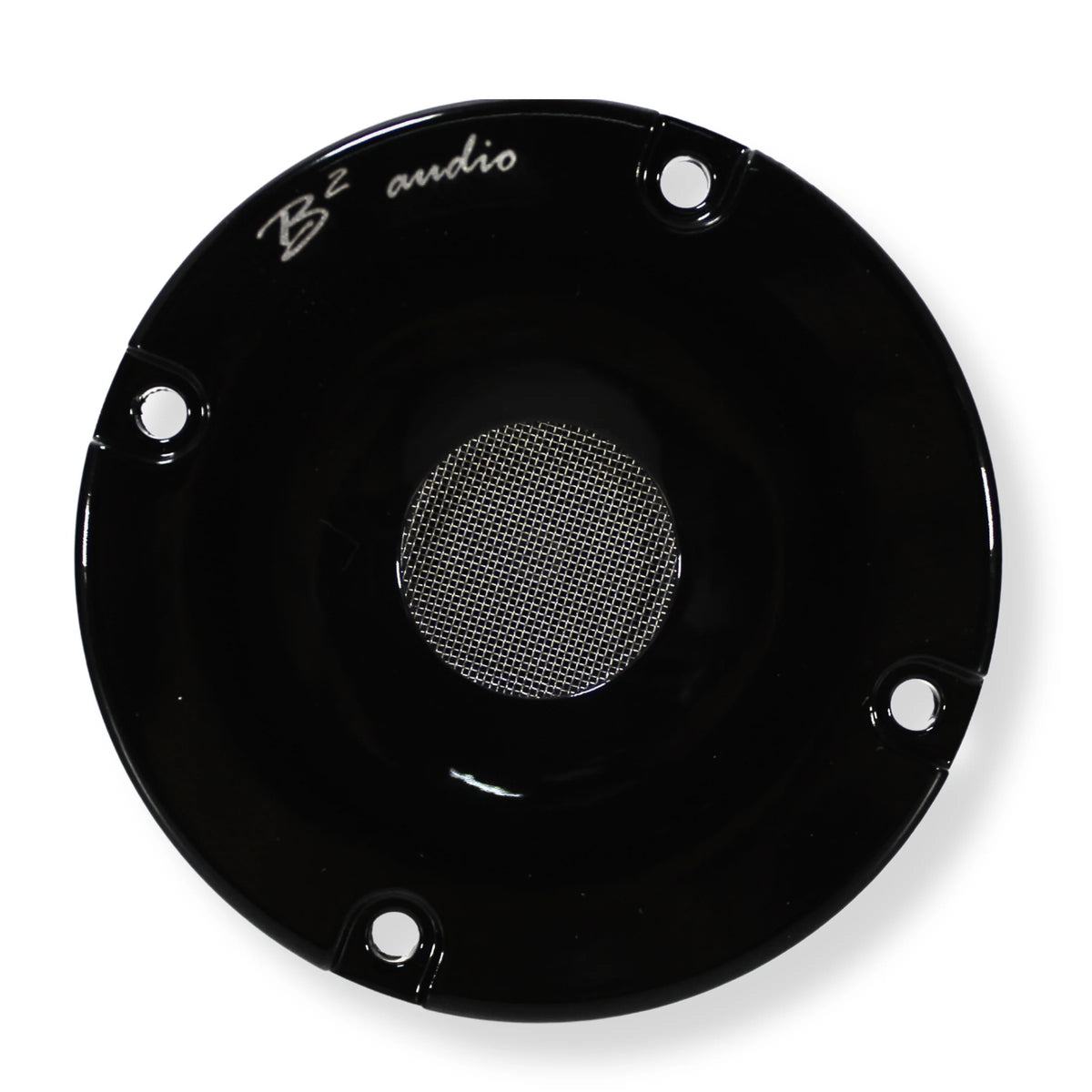

When it comes to PAs for stage use, compression drivers are often the preferred choice due to their wide bandwidth and the ability to finely adjust sound with horns. The RAGE CDR follows this principle but is designed as a shallow-mount option with a flat CDH aluminum horn.
This setup ensures a wide bandwidth and improved sound dispersion compared to a bullet tweeter. For those seeking even more performance, it’s possible to swap the current horn for a larger one that offers enhanced characteristics.
APPLICATIONS
The RAGE CDR has found its way into many of the high-end demo builds worldwide, becoming a popular choice among builders looking for top-tier performance. Not only limited to just cars, motorcycles are also embracing this technology, embracing the advanced neodymium structure and high efficiency it offers.
With the flexibility to be installed in various locations, these versatile speakers can handle up to 120 watts, ensuring a powerful sound experience that never fails to captivate, even when operating at lower power levels.
