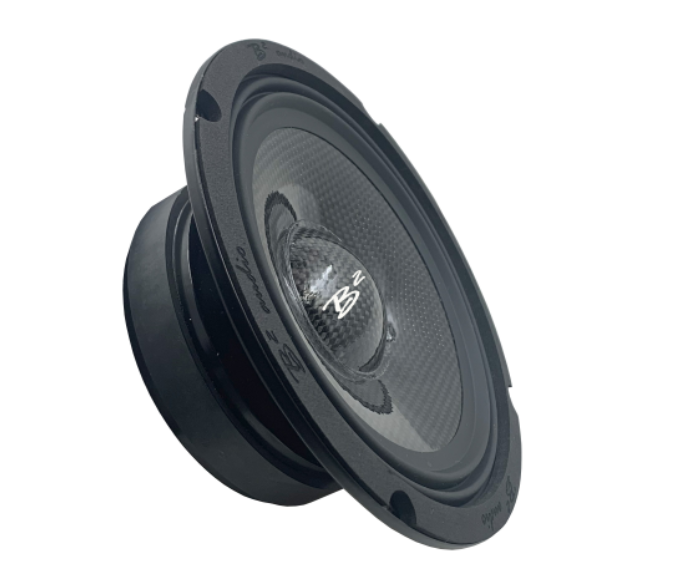

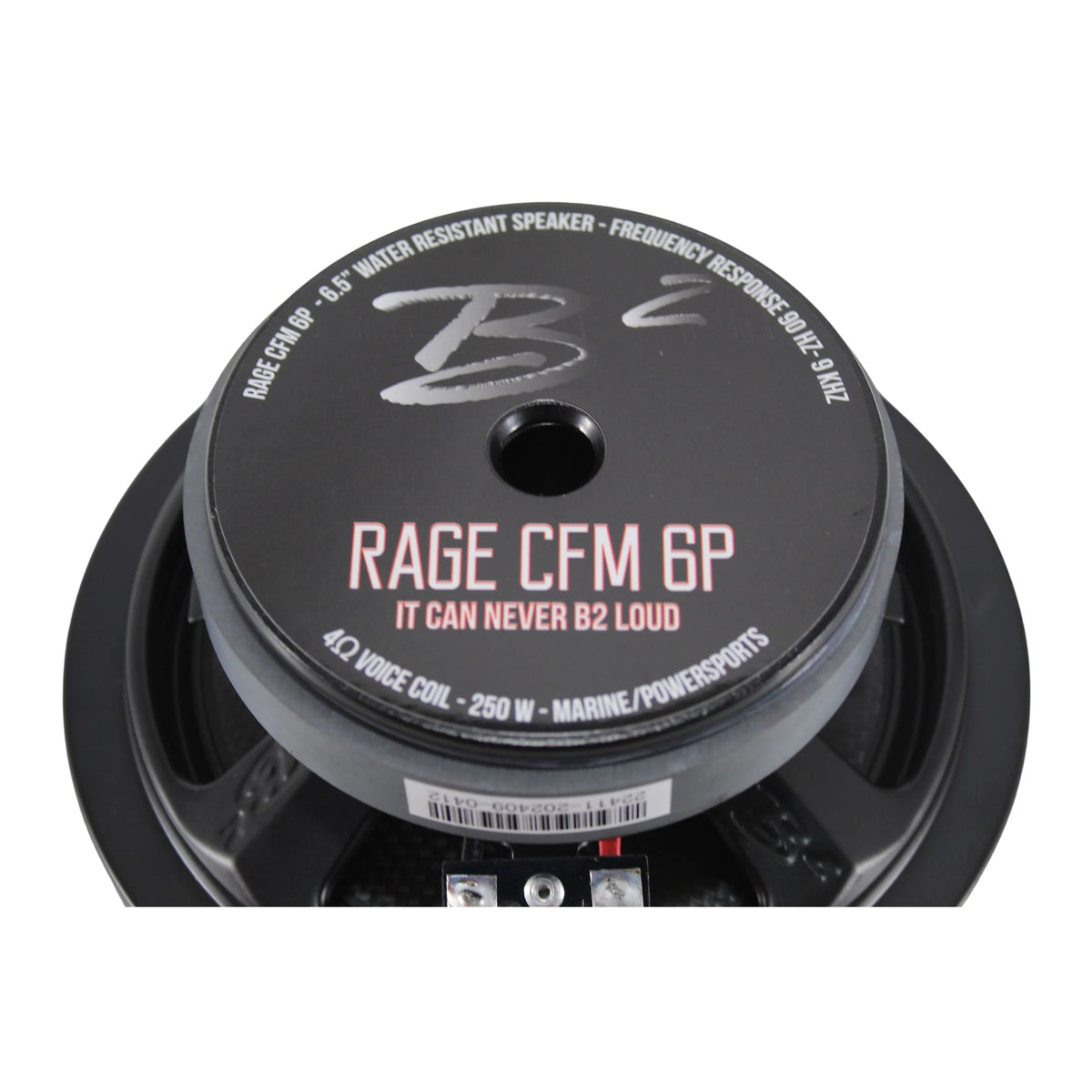

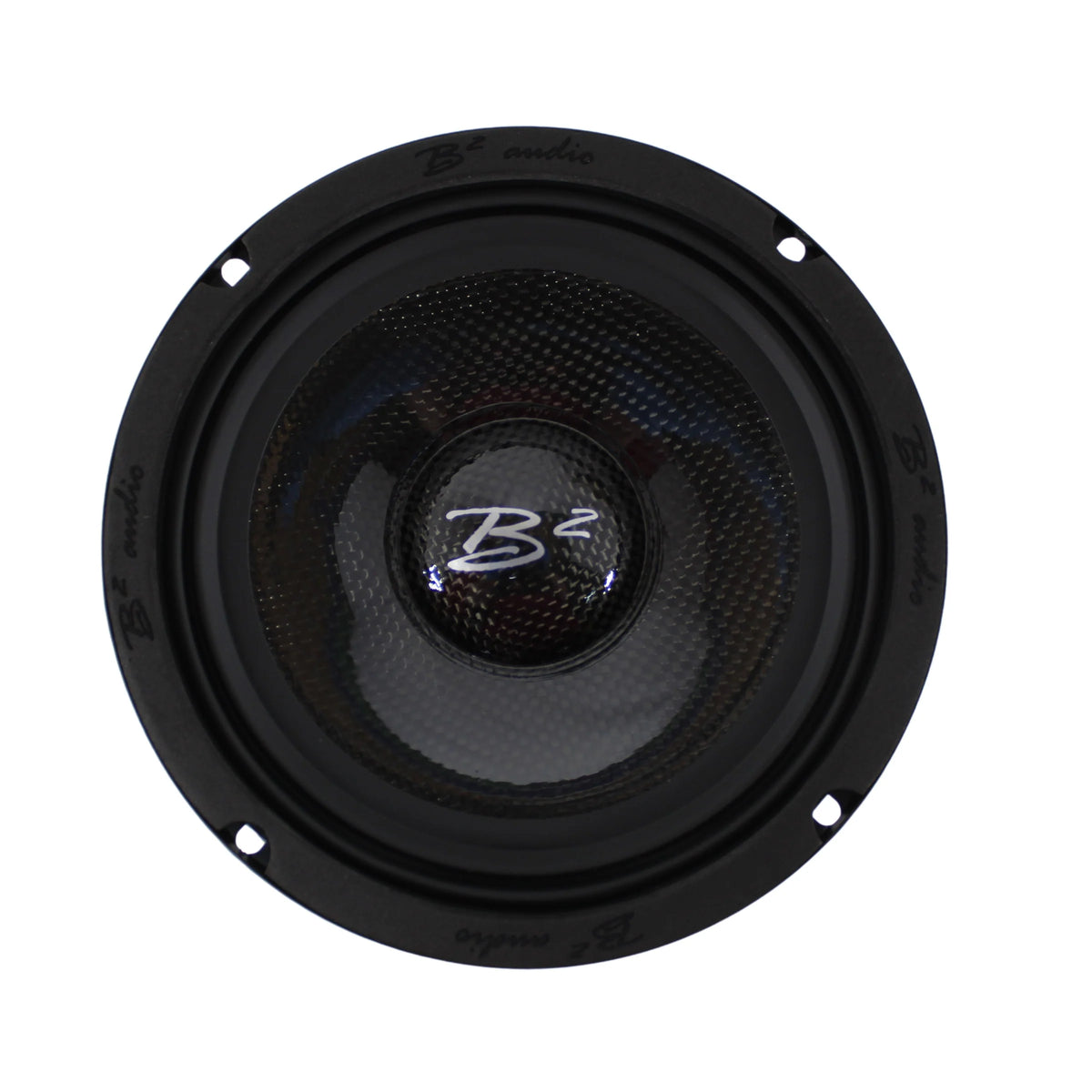

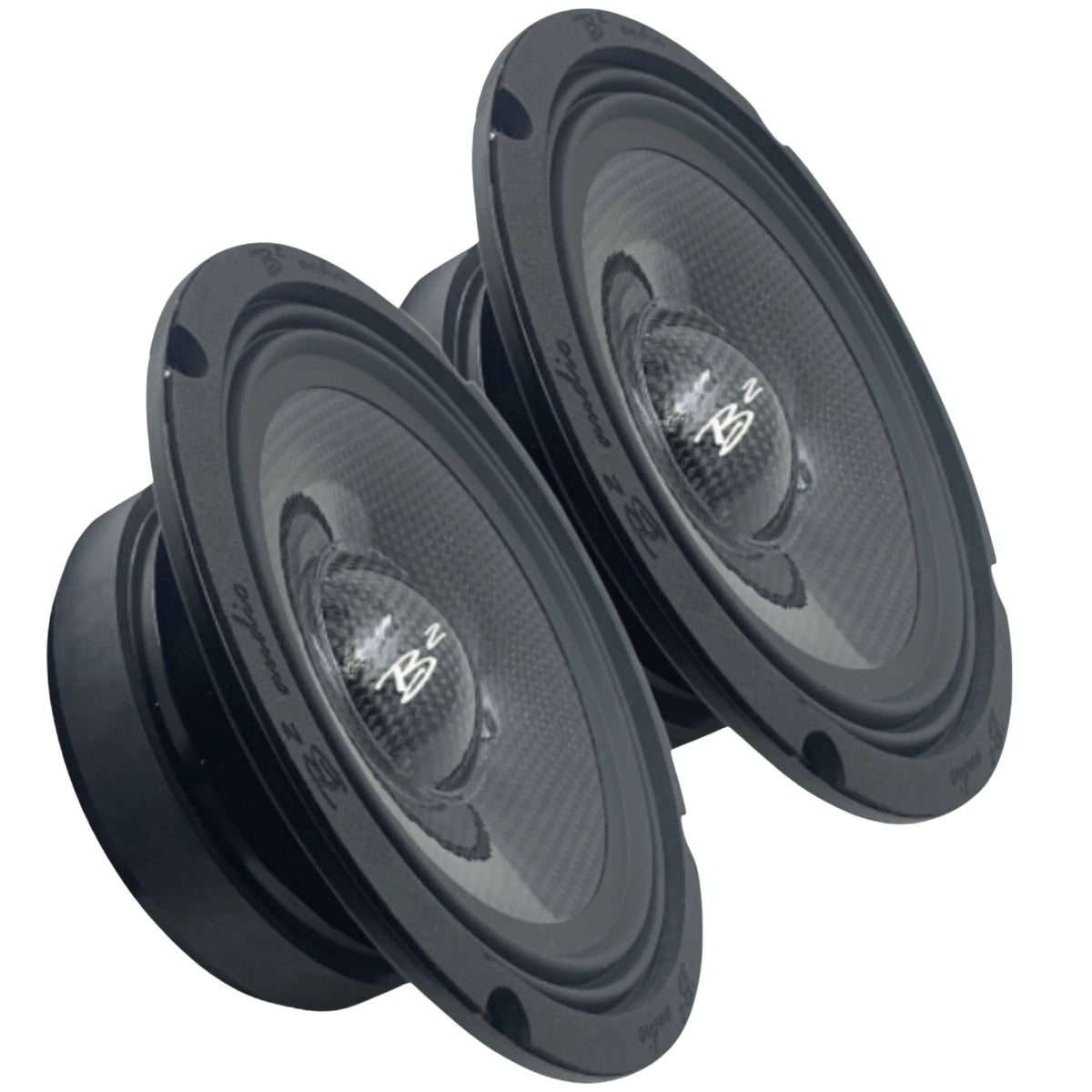

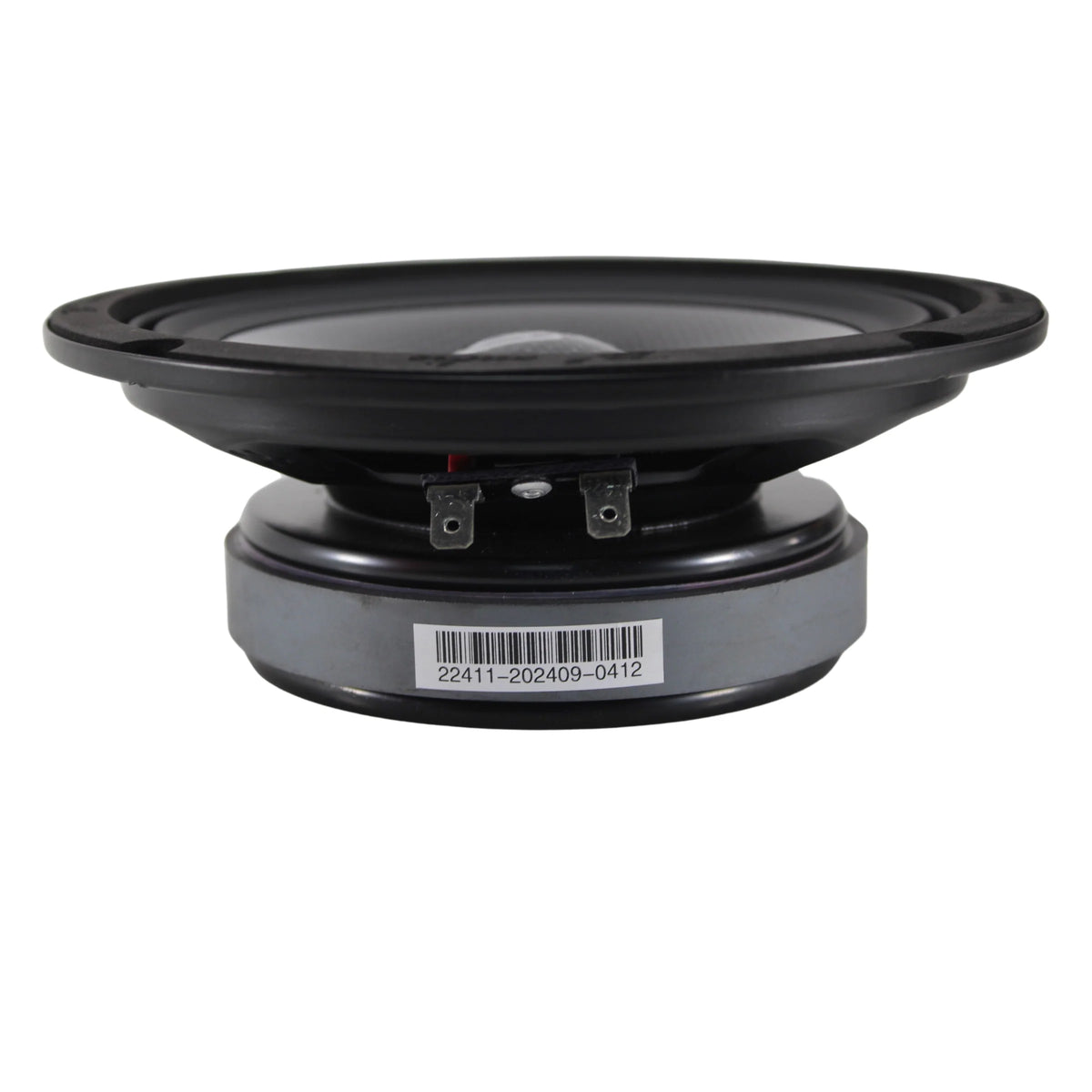

B2 Audio Rage CFM 6P
B2 Audio Rage CFM 6P
T/S-parametere ⌄
Re: 3,3 Ω
Qms: 12,44
Qes: 1,90
Qts: 1,64
Vas: 3,0 L
Mms: 14,6 g
Cms: 119,9 µm/N
Sd: 132,7 cm²
Xmax: 4 mm (én vei)
BL: 4,4 Tm
Le: 0,51 mH
Virkningsgrad: 0,26 %
EBP: 57,9 (beregnet fra Fs/Qes)
Tekniske spesifikasjoner
| Størrelse | 6,5 tommer (165 mm) |
| RMS-effekt | 80 W per element |
| Maks effekt | 250 W per element |
| Impedans | 4 Ω |
| Frekvensområde | 90–8 000 Hz |
| Følsomhet | 90,2 dB |
| Talespole | 38,1 mm (1,5 tommer) |
| Magnettype | Ferritt |
| Magnetvekt | 20 oz |
| Membranmateriale | Karbonfiber |
| Oppheng | Værbestandig Santoprene |
| Konstruksjon | Slank og værbestandig |
| Kobberkortslutningsringer | Ja |
| Monteringsdybde | 58 mm |
| Total dybde | 64 mm |
| Utskjæringsdiameter | 144 mm |
| Ytre diameter | 165 mm |
THE CFM
The popularity of the RAGE P led us to develop a slimline series, with the added benefit of being weatherproof. The RAGE CFM was created based on our customers’ feedback, seeking something beyond the ordinary. However, considerations such as depth, weight, and the beloved B2 audio sound remain significant factors.
Despite the challenge of designing a 6.5″ PA speaker with a broad frequency response (90 Hz ~ 8 KHz) that includes lower frequencies, the CFM’s custom-tooled waterproof Santoprene surround enhances efficiency and linearity resulting in a more competent loudspeaker.
TRADEOFFS
CFM – Carbon Fiber Marine, Motorcycle, Mobile. All applications fit this acronym. Rather than opting for coated fiberglass cones, the pricier Carbonfiber helps reduce the MMS (the weight of the speaker’s parts mounted in the speaker) which must be lightweight while still incorporating quality parts. Carbon fiber, as opposed to fiberglass, is superior and when combined with the dual U-shaped Santoprene surround, we have both a weatherproof speaker and the optimal components to achieve our desired audible response.
The RAGE CFM series continues to use copper shorting rings to maintain low distortion, ensuring you won’t grow weary of listening to these speakers even during extended periods of use. The added advantage of their slim design makes them ideal for fitting into nearly any installation without needing to consider mounting depths, as it is only 2.28″ / 58 mm.
