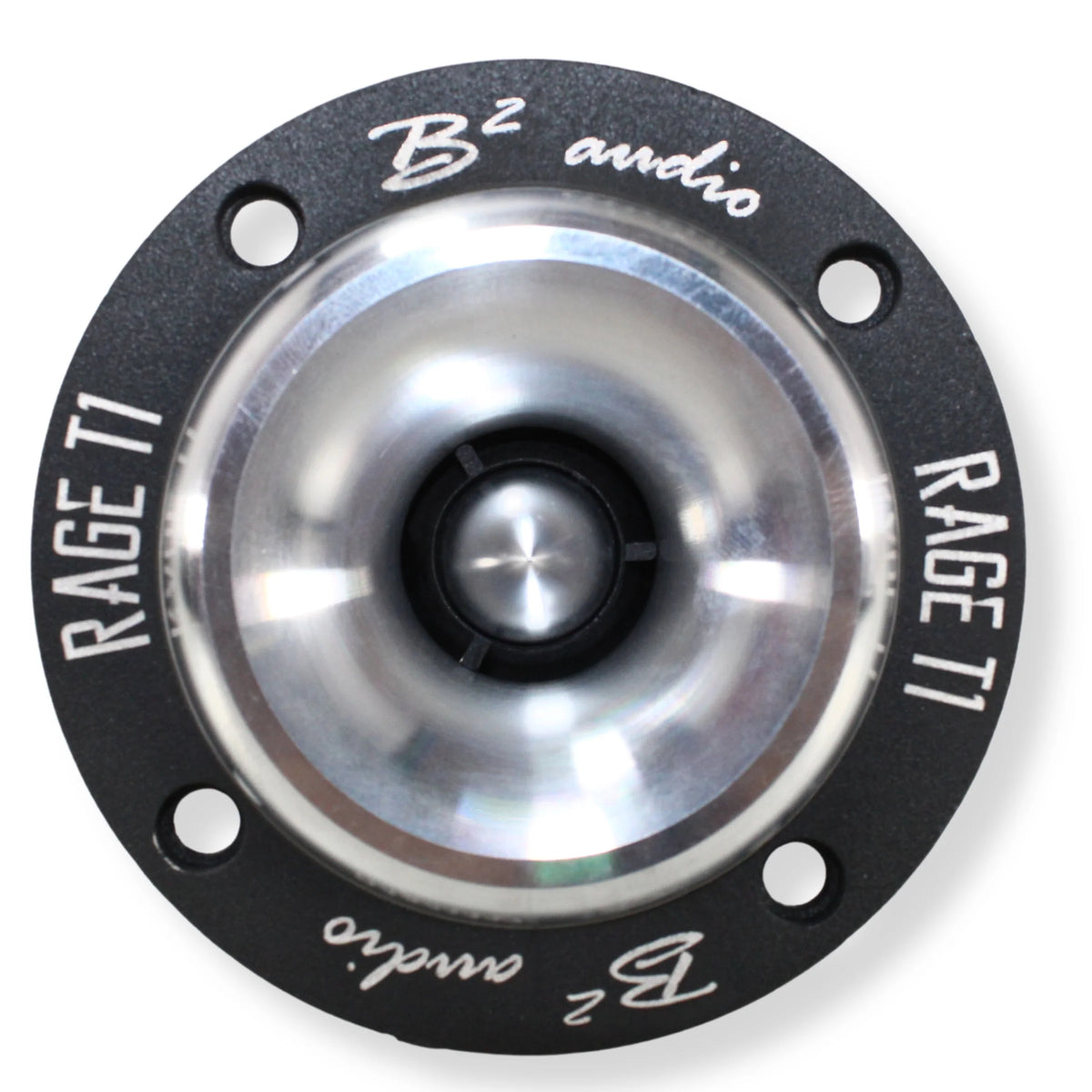

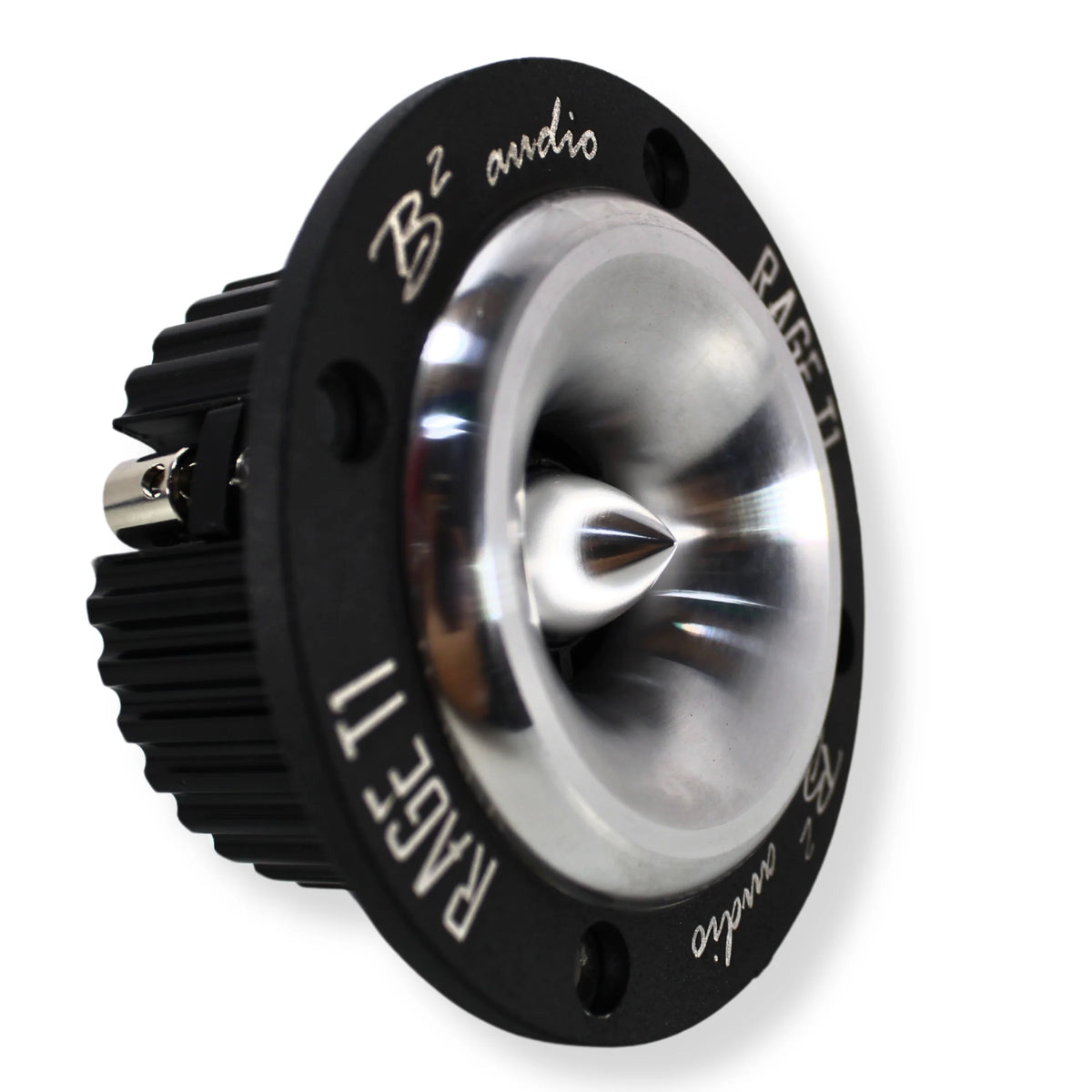

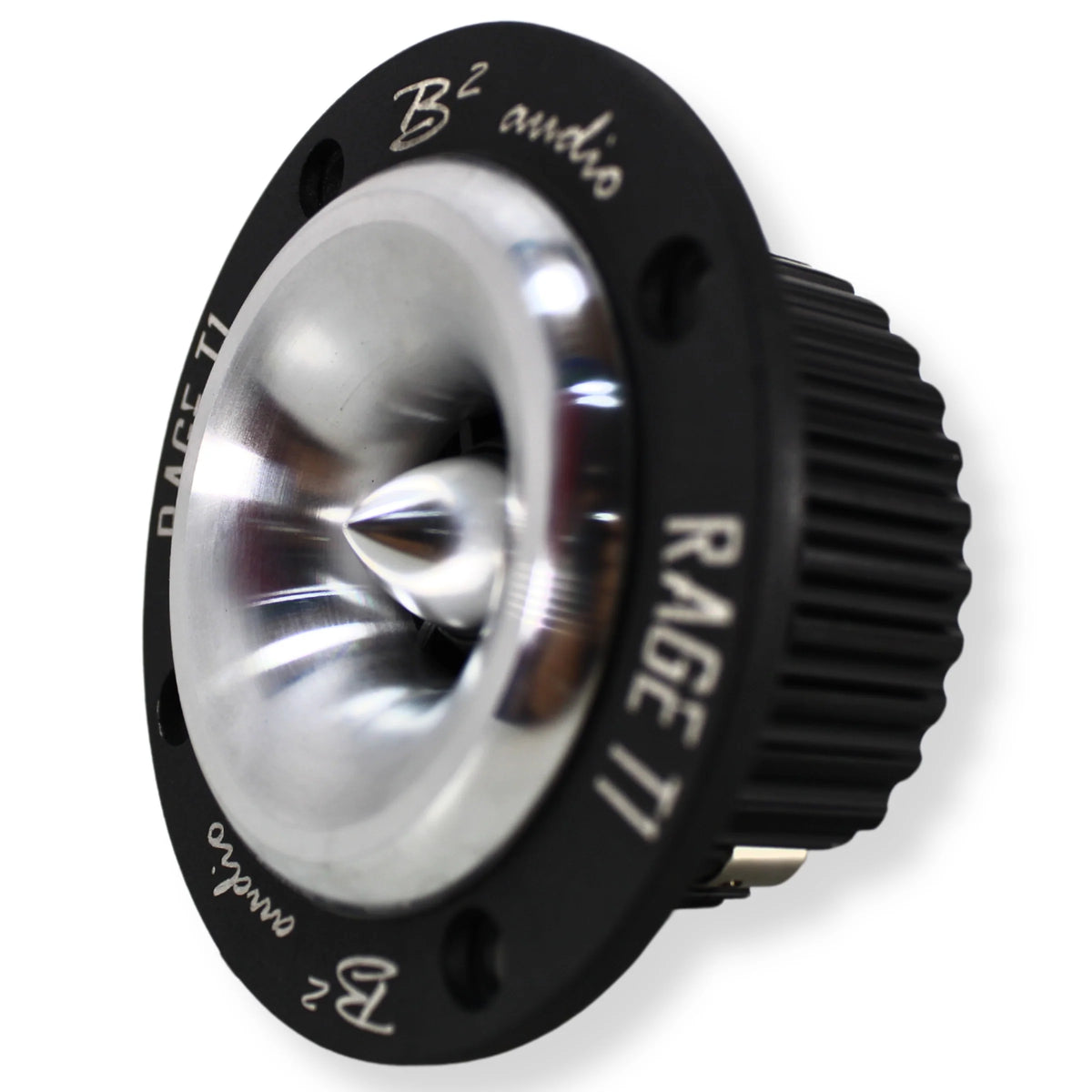

B2 Audio Rage T1 Neo
B2 Audio Rage T1 Neo
T/S-parametere ⌄
Re: 3,9 Ω
Tekniske spesifikasjoner
| Type | Bullet-diskant / horndiskant |
| RMS-effekt | 100 W per element |
| Maks effekt | 200 W per element |
| Impedans | 4 Ω |
| Frekvensområde | 3 000–20 000 Hz |
| Følsomhet | 106 dB (1 W / 1 m) |
| Talespole | 25,4 mm (1 tomme) |
| Talespolemateriale | CCAW |
| Magnettype | Neodym |
| Membranmateriale | Titan |
| Resonansfrekvens (Fs) | 2 500 Hz |
| Anbefalt delefrekvens | Fra 4 000 Hz / 12 dB per oktav |

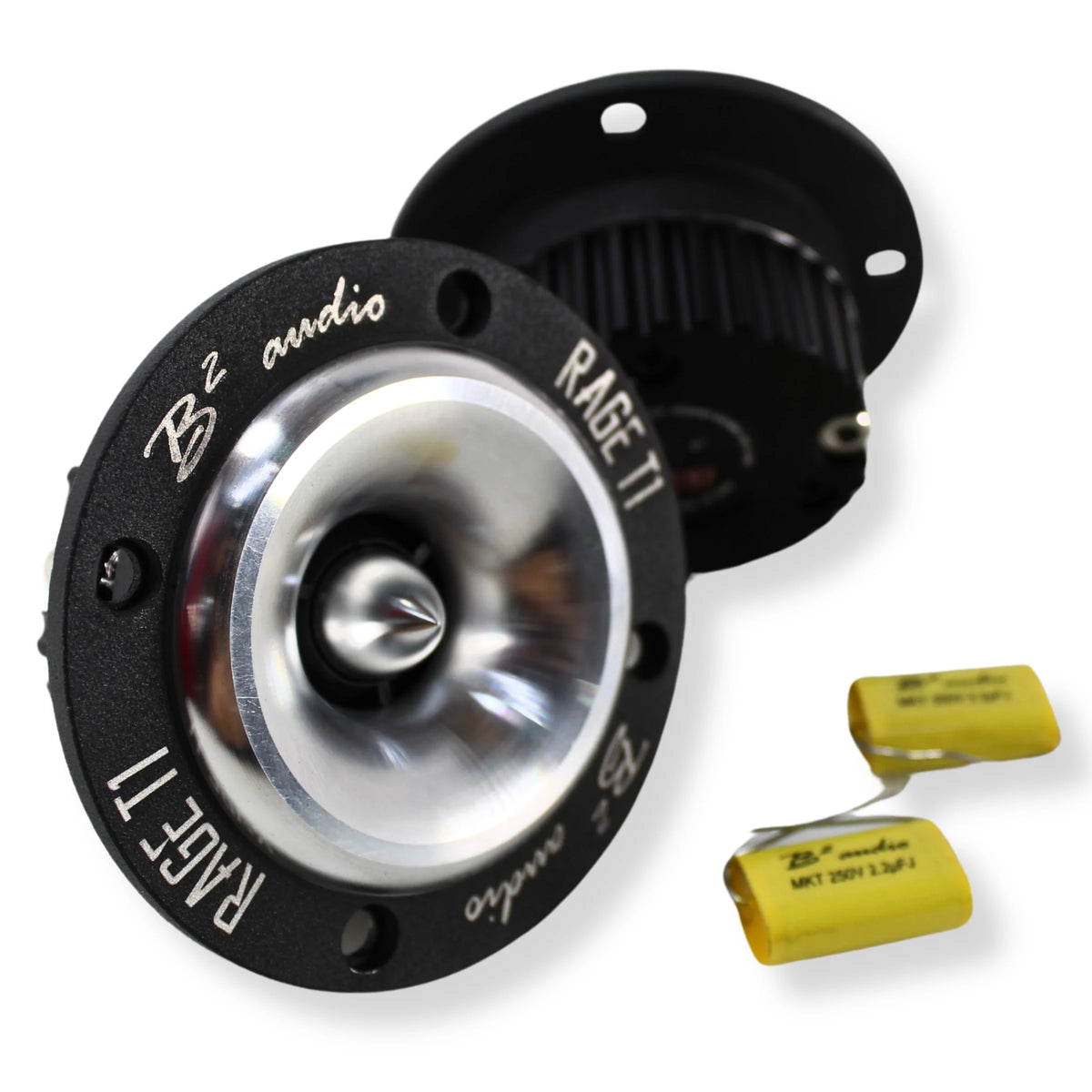

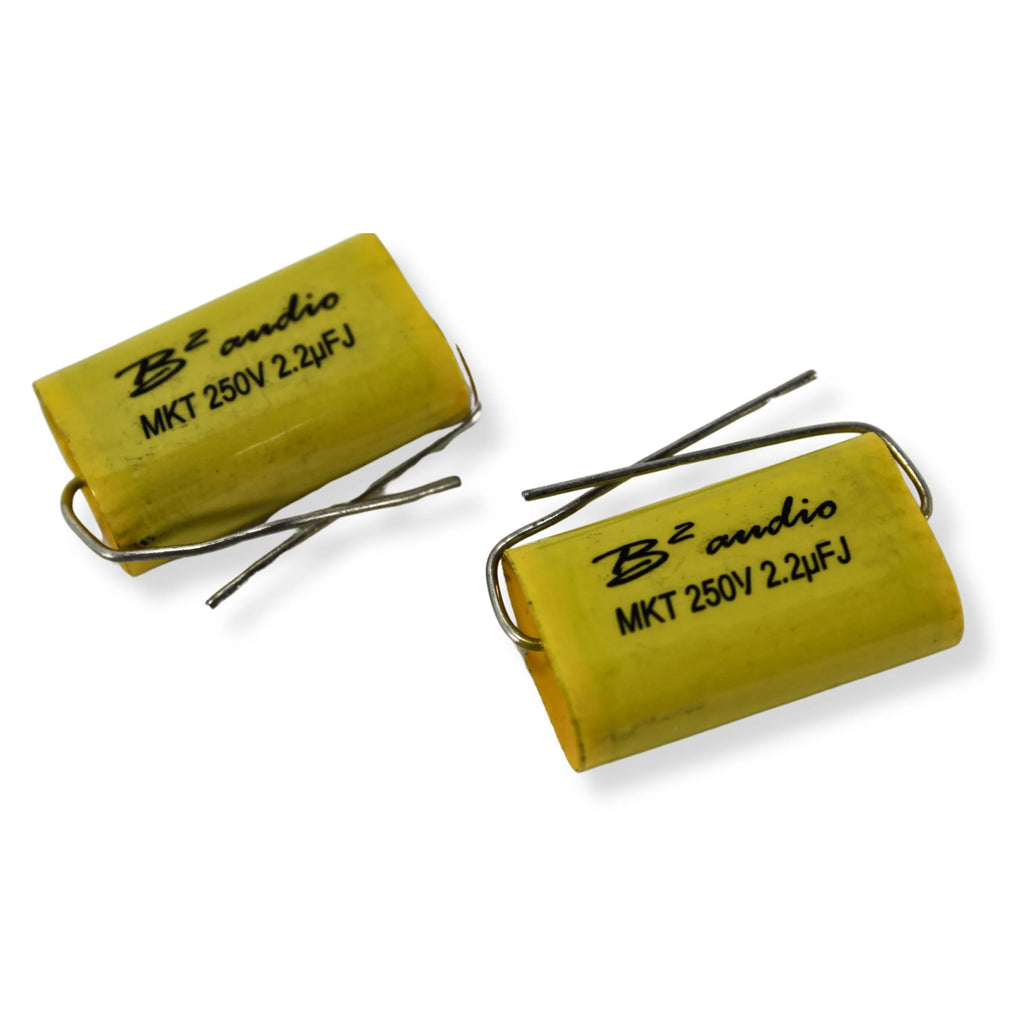

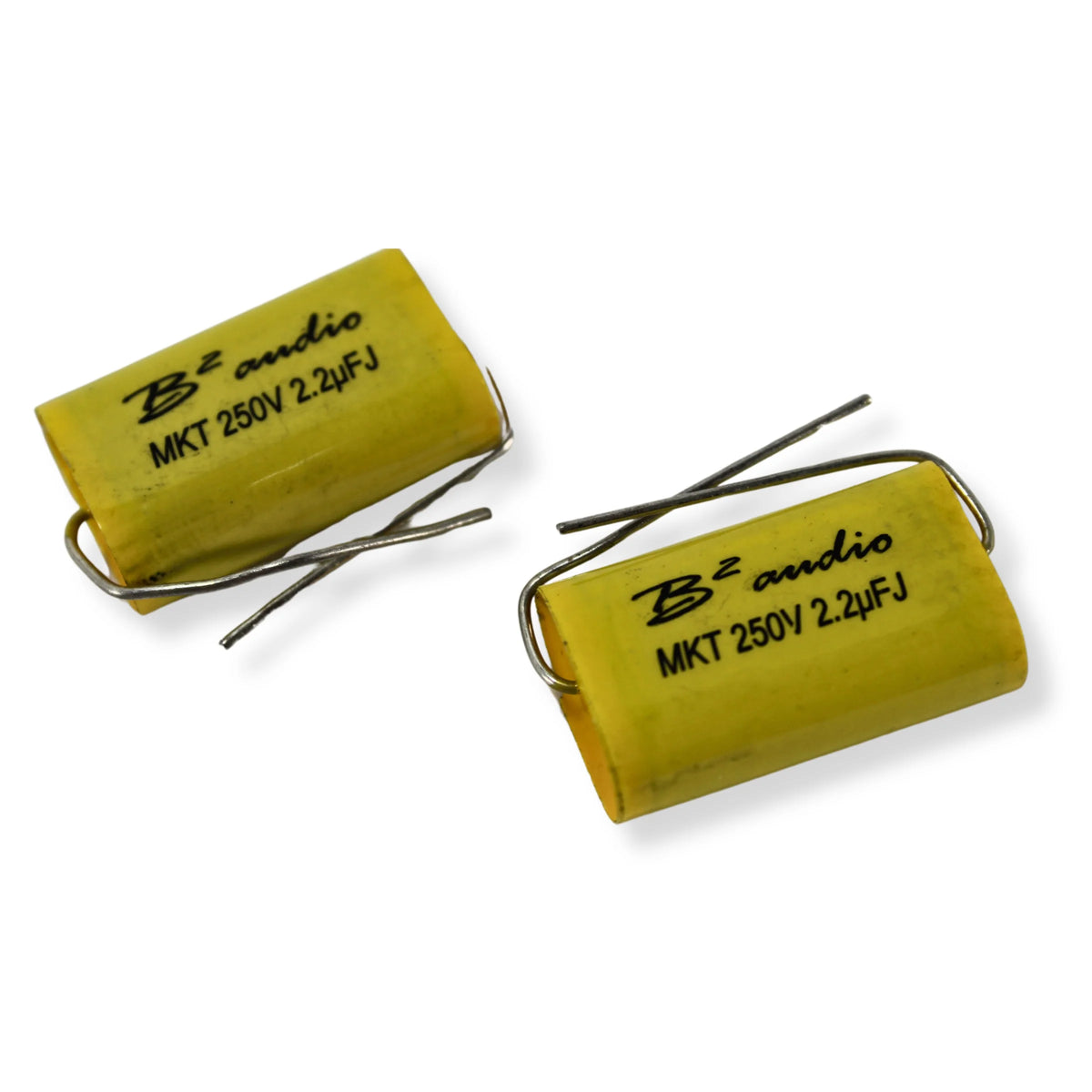

| Medfølgende kondensator | 2,2 µF / 250 V |
| Halsdiameter | 46 mm |
| Monteringsdybde | 33 mm |
| Total dybde | 42 mm |
| Utskjæringsdiameter | 65 mm |
| Ytre diameter | 82 mm |

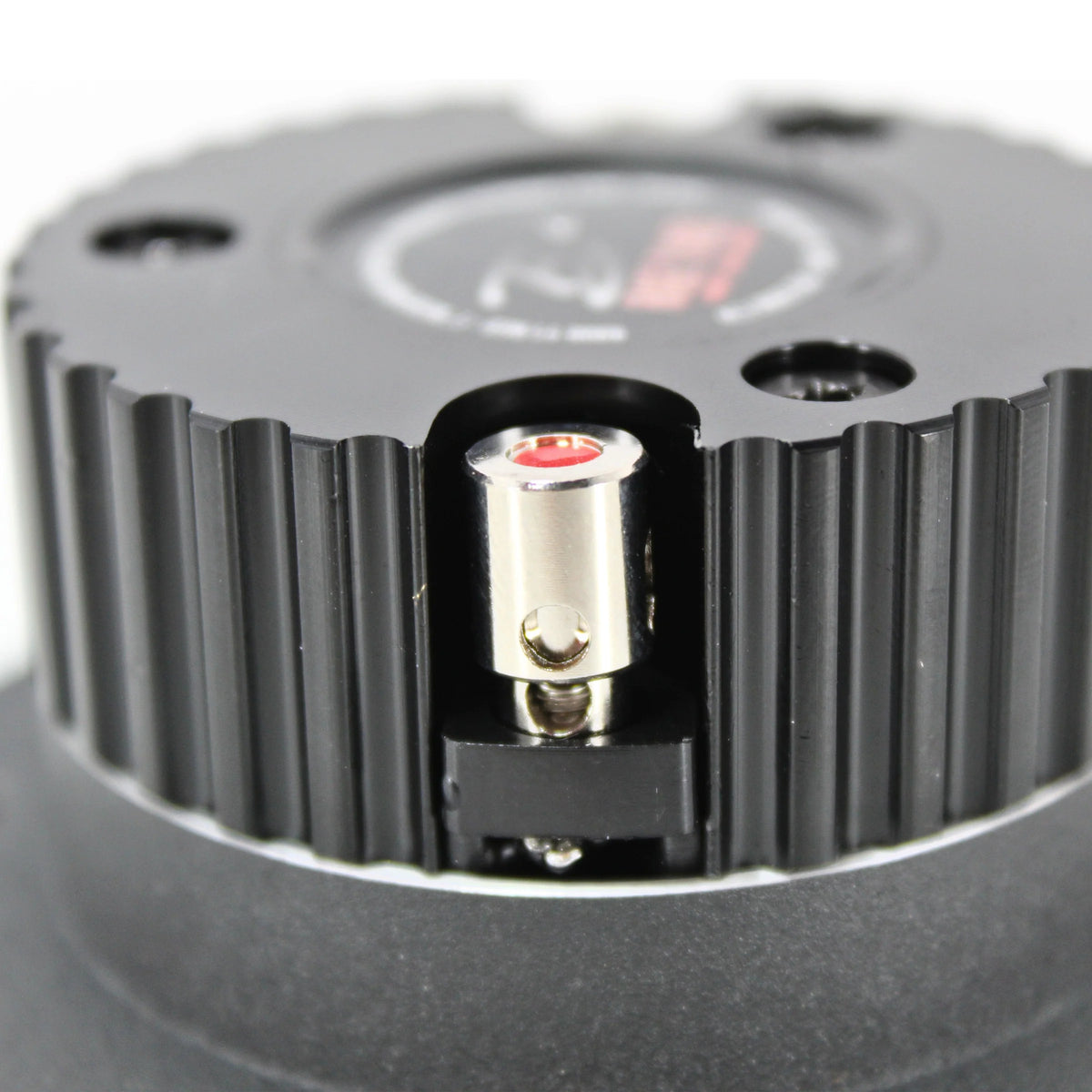

| Tilkobling | Trykkterminaler |
| Salgsenhet | Par (2 diskanter) |
Take your audio experience to the next level with the B2 Audio Rage Series RAGE-T1-NEO Bullet Tweeters. Engineered for high-octane performance, these tweeters boast upgraded diaphragms and optimized magnets, delivering sharper and more balanced sound. With an expanded frequency response and higher SPL output, they provide clearer and more open sound than many other comparable tweeters on the market.
Covering a frequency range from 3 KHz to 20 KHz +, these tweeters ensure precise and detailed audio reproduction, offering an immersive listening experience. Built for high power handling and durability, the B2 Audio Rage Series Bullet Tweeters promise unparalleled performance and reliability for your audio system.
The refined throat and extended width aid in the comprehensive dispersion of sound, resulting in a richer tonality complemented by the streamlined phase plug design.
Consequently, a more polished and less strident audio output is achieved. The elevated power handling capability of 100 watts RMS underscores the high performance of this tweeter. Simple installation is facilitated by the push terminals, eliminating the need for soldering.
